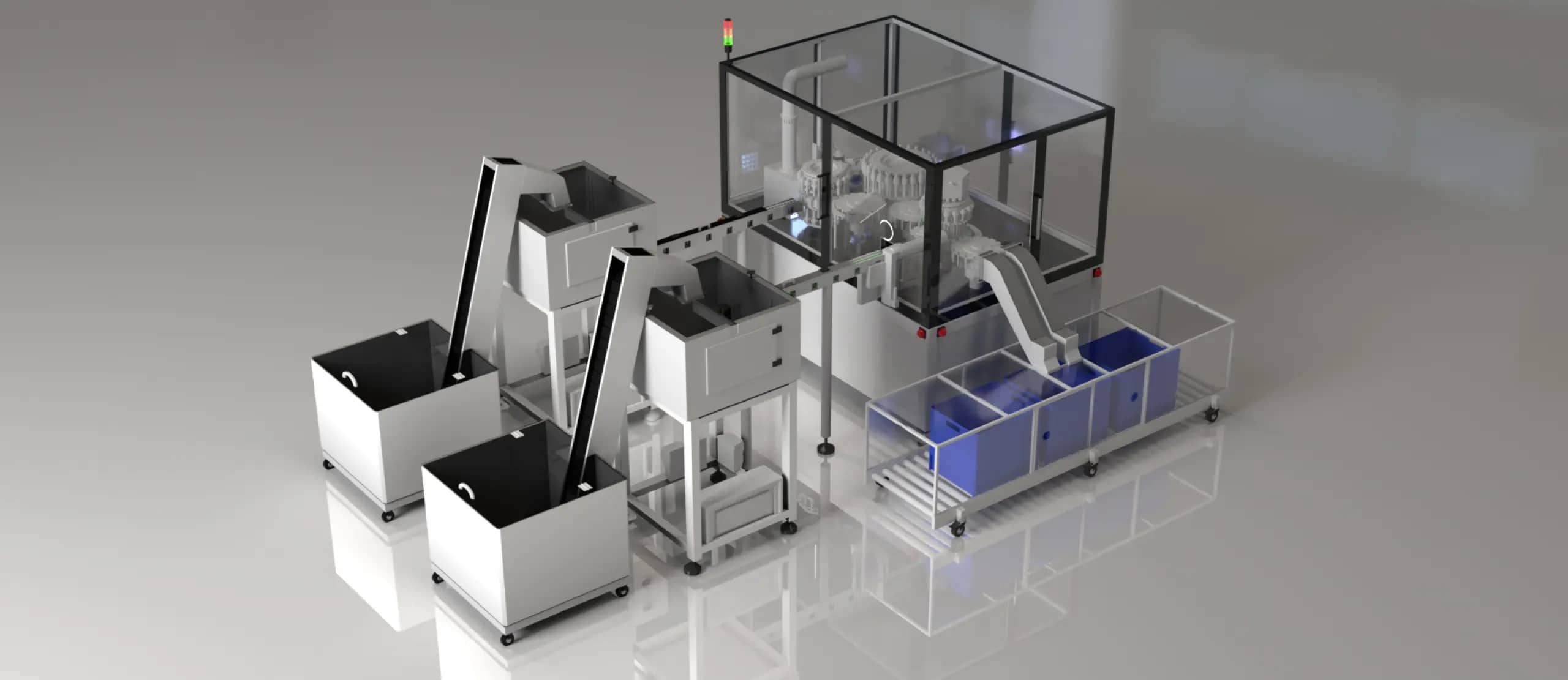

CASCADE™ Syringe Automation Platform
High-Speed Syringe Printing, Assembly and Verification on One Integrated Platform
The CASCADE™ platform is AAE's next-generation automation solution for high-volume syringe manufacturing. By combining printing, curing, inspection, assembly, and testing into a single continuous-motion production platform, CASCADE dramatically reduces factory footprint, capital investment, labor requirements, and work-in-progress inventory.
Unlike traditional manufacturing lines that require separate printing and assembly machines, CASCADE performs all critical processes in one synchronized production flow. The result is a more efficient, more reliable, and more sustainable manufacturing solution for medical device producers worldwide.
Why CASCADE?
One Platform. One Production Flow.
Traditional syringe manufacturing often involves multiple machines connected by conveyors, buffers, and manual handling steps. Every transfer introduces complexity, risk, and cost.
CASCADE eliminates these inefficiencies by integrating part feeding, surface treatment, orientation, UV Dry Offset printing, UV curing, inspection, assembly, leak testing and product unloading into a single continuous-motion platform.
Benefits
Lower capital investment
Reduced factory footprint
Fewer operators
Less work-in-progress inventory
Higher Overall Equipment Effectiveness (OEE)
Simplified validation and maintenance
Designed Specifically for Syringe Manufacturing

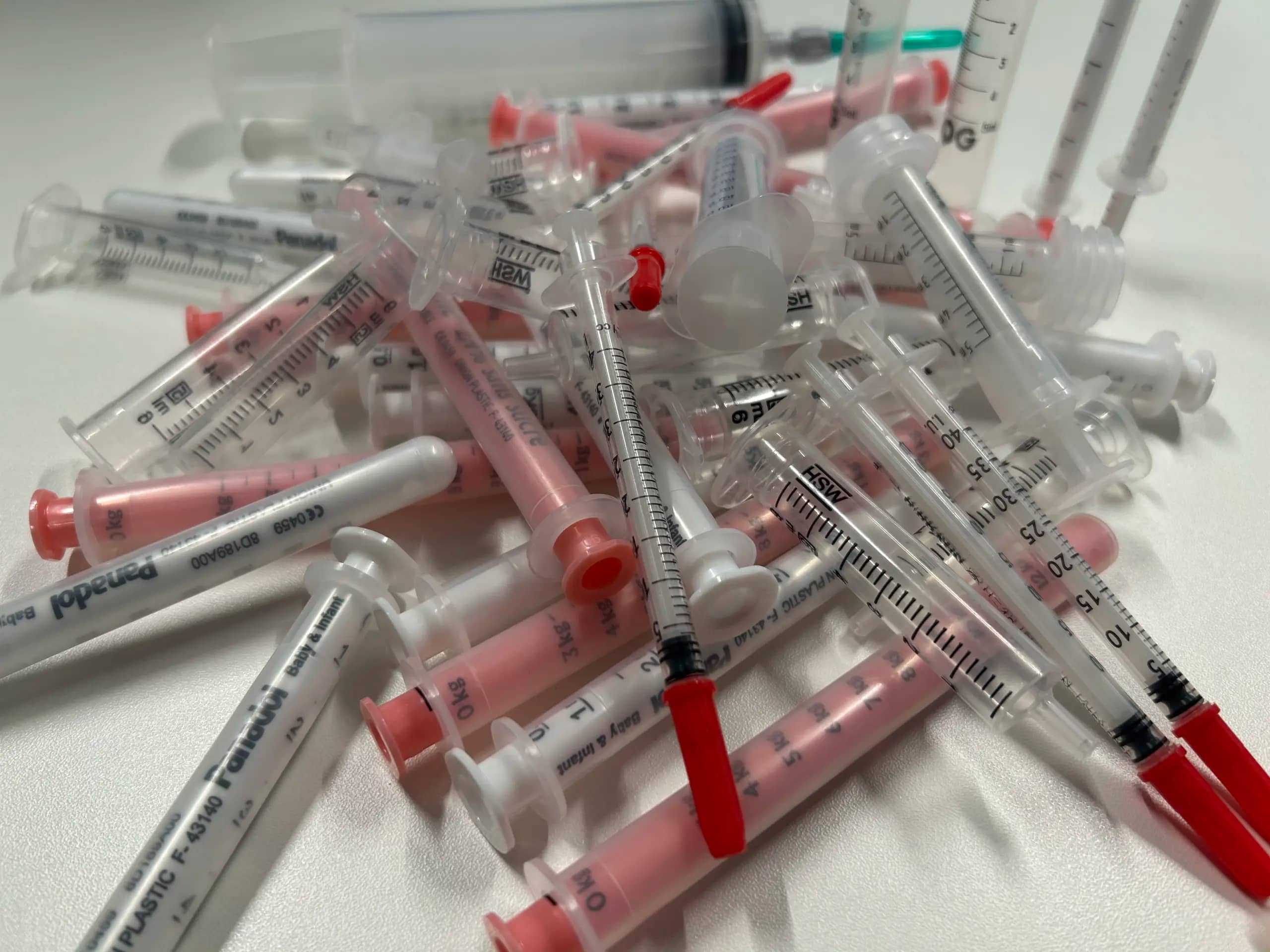

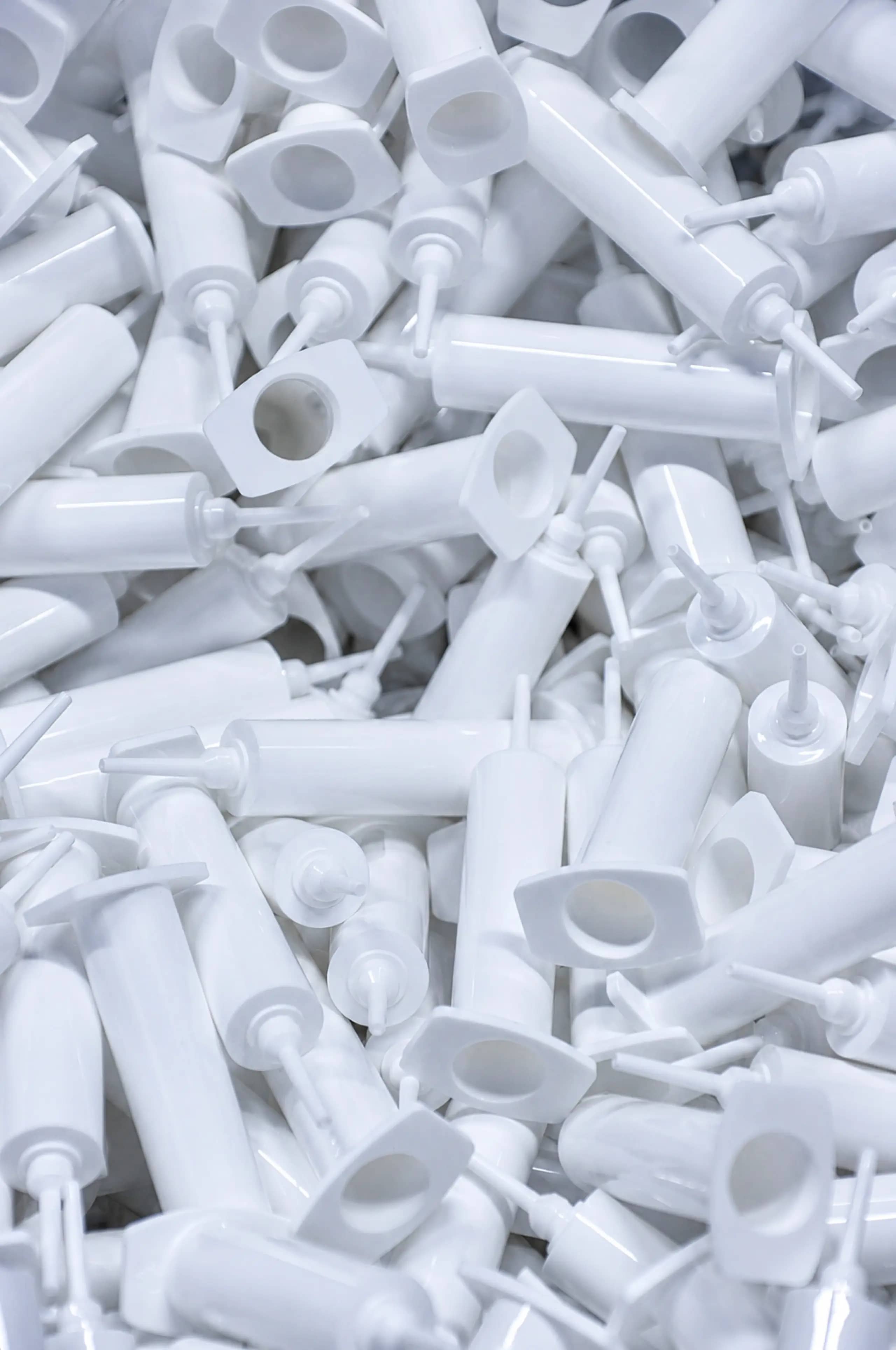

CASCADE has been developed for high-volume medical syringe production, supporting a wide range of syringe formats and manufacturing requirements.
The platform can be configured for:
2-part hypodermic syringes
3-part syringes
Safety syringes
Specialty drug-delivery devices
Custom syringe formats
Production capacities range from approximately 120 to 600 parts per minute, depending on product design and process configuration.
Inline Verification: Quality Built Into Every Step
CASCADE is based on a simple philosophy:
The machine does not only perform the process — it proves the process was performed correctly.
Every critical manufacturing step is continuously monitored and verified in real time.
Examples include:
Feeding verification
Product presence detection
Rotation confirmation
Print inspection
Force-controlled stopper/ plunger insertion
Leakage testing
Product tracking and rejection management
By detecting deviations immediately, CASCADE prevents defects from moving downstream and enables real-time process optimization.
Digital Manufacturing Ready
Every production event generated by CASCADE can be logged, time-stamped and linked to production batches.
The platform can connect directly to existing:
MES systems
SCADA environments
Factory analytics platforms
SPC systems
For manufacturers without a MES environment, AAE can provide a dedicated Edge Data Platform that collects, stores, visualizes, and analyzes production data directly at the machine level.
This enables full traceability and actionable manufacturing intelligence from day one.
Flexible Platform Architecture
CASCADE is more than a syringe machine. It is a configurable manufacturing platform.
Available process modules include:
Flame-, Corona- or Plasma pre-treatment
Eccentric tip, Axial and Radial orientation
Siliconization
Stopper assembly
Force measurement during assembly
Vision inspection
Spring-loaded drive gears
Multi-color UV Dry Offset printing
Ultrasonic welding modules
This modular approach allows manufacturers to adapt the platform to current and future product requirements without changing the core machine architecture.
UV Dry Offset Technology

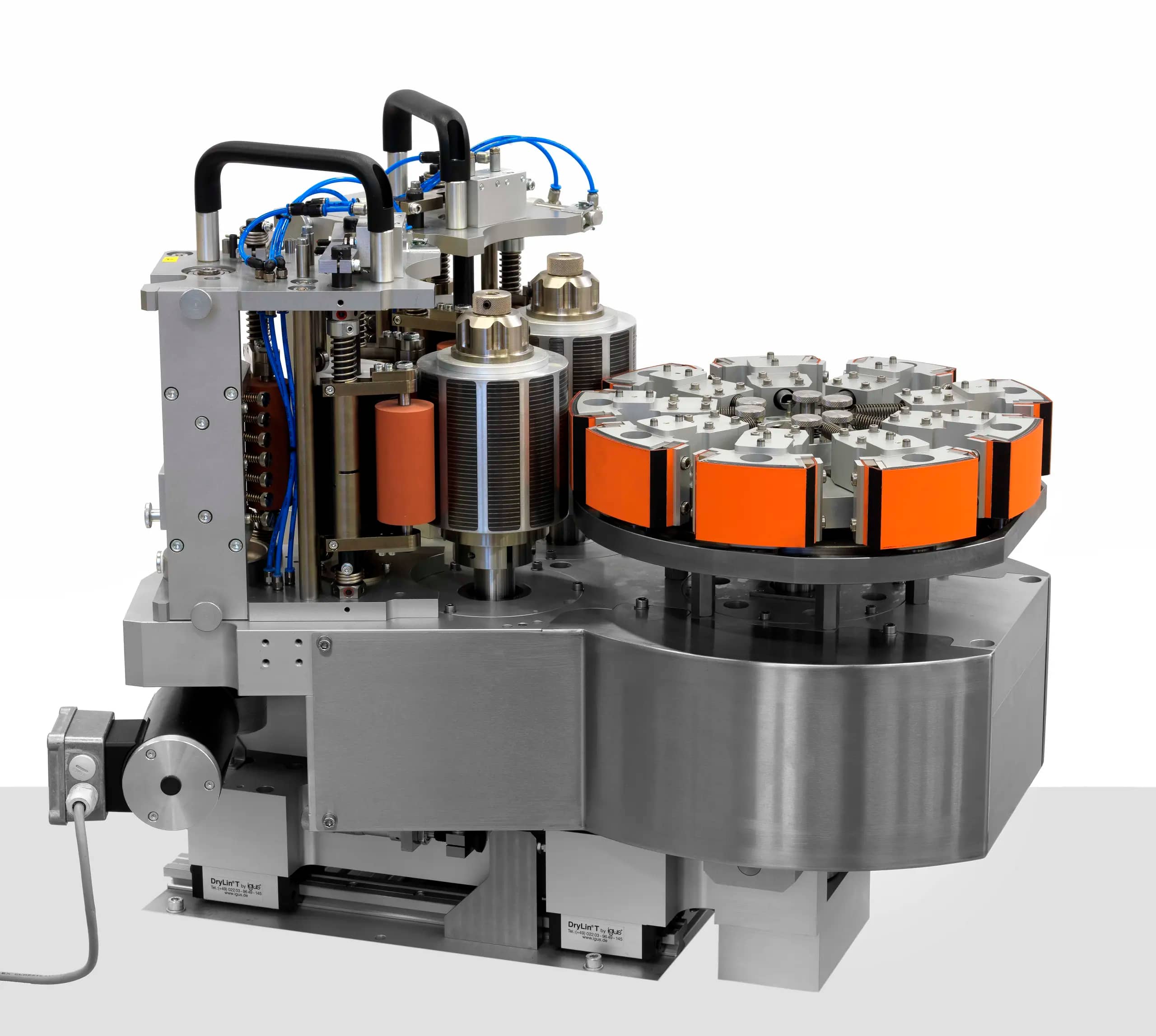

At the heart of CASCADE is UV Dry Offset printing technology.
Unlike conventional printing methods, UV inks cure instantly after printing. This allows syringes to move directly into inspection and assembly without intermediate storage or drying time.
Benefits include:
High-speed production
Excellent print quality
360° printing capability
Reduced consumable usage
Improved sustainability
Simplified production logistics
Future-Ready Manufacturing

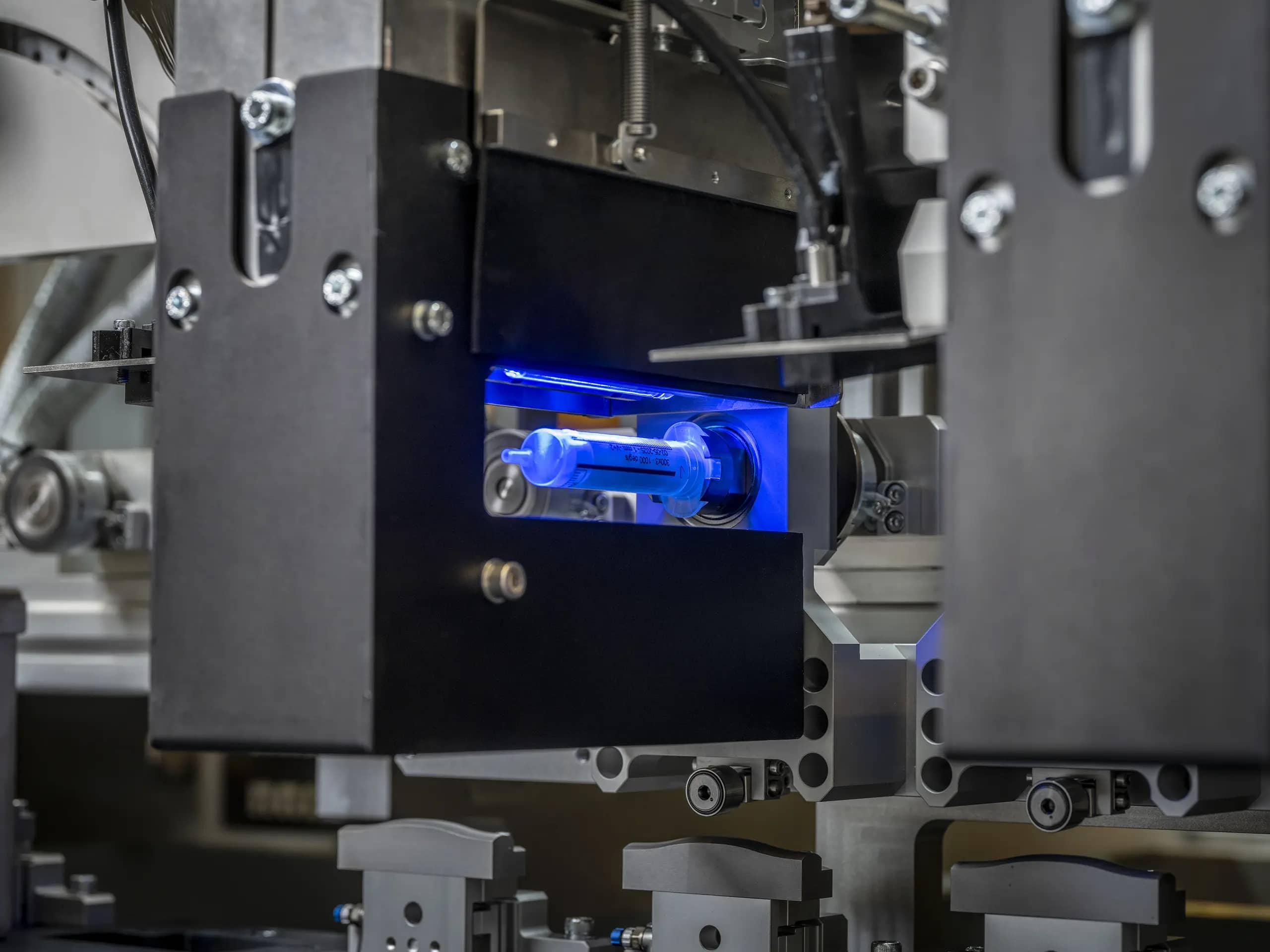

AAE continues to develop the CASCADE platform with emerging technologies such as LED UV curing and advanced manufacturing analytics.
LED UV technologies offer significant reductions in energy consumption while maintaining the print quality and production speeds required by modern medical device manufacturers.
Combined with continuous-motion automation and inline verification, these developments will help shape the future of syringe manufacturing.
Partner with AAE
For more than five decades, AAE has been developing high-performance automation systems for the medical device industry.
The CASCADE platform combines our expertise in continuous-motion engineering, printing technology, assembly automation, and digital manufacturing into a single scalable solution for syringe production.
Interested in optimizing your syringe manufacturing process?
Contact our team to discuss how CASCADE can be configured for your application.
